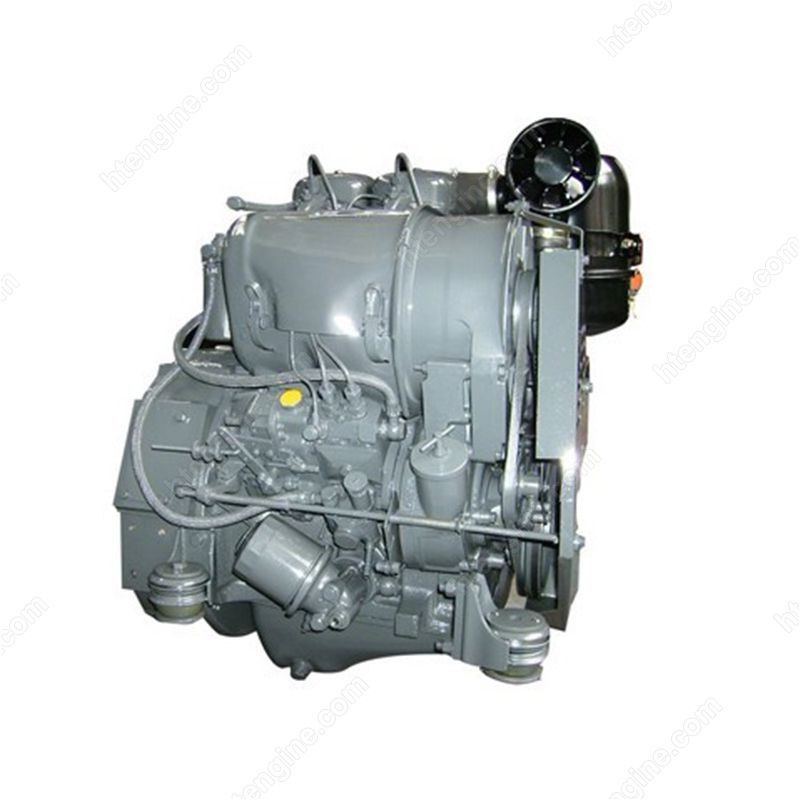

Deutz Air-cooled Diesel Engines naturally aspirated in-line-engine. Direct injection.
Advanced injection and combustion system.
PTOs via gear, V-belt and crankshaft.
Extremely compact design.
High torque at low speeds.
Modular system with single cylinder arrangement and high degree of parts commonality.
Customized component system with many different peripheral parts.
Cold-starting ability even under extreme climatic conditions.
Production specification
Engine Type | Rated Power | Bore * Stroke | Weight | Fuel Consumption | |||
1500 rpm | 1800 rpm | 2300 rpm | 2500 rpm | --------- | ---- | ------- | |
F2L912 | 14 kw | 17 kw | 20 kw | * | 100*120 | 245 kg | 1.88L |
F3L912 | 24 kw | 28 kw | 36 kw | 38 kw | 100*120 | 275 kg | 2.828L |
F4L912 | 32 kw | 38 kw | 46 kw | 51 kw | 100*120 | 300 kg | 3.77L |
F6L912 | 48 kw | 60 kw | 74 kw | 78 kw | 100*120 | 410kg | 5.655L |
F4L912T | 41 kw | 48kw | * | * | 100*120 | 310 kg | 3.77L |
F6L912T | 61 kw | 72kw | * | * | 100*120 | 420 kg | 5.655L |
F4L913 | 34 kw | 40 kw | 50 kw | 56 kw | 102*125 | 310 kg | 4.086L |
F6L913 | 51 kw | 65 kw | 79 kw | 85 kw | 102*125 | 420 kg | 6.128L |
BF4L913 | 57 kw | 66 kw | 68 kw | 78 kw | 102*125 | 350 kg | 4.085/6L |
BF6L913 | 88 kw | 106 kw | 112 kw | 118 kw | 102*125 | 485 kg | 6.128L |
BF6L913C | 114 kw | 130 kw | 125 kw | 141 kw | 102*125 | 510 kg | 6.128L |
F4L914 | 41 kw | 46 kw | 50 kw | 56 kw | 102*132 | 310 kg | 4.314 L |
F6L914 | 62 kw | 73 kw | 79 kw | 85 kw | 102*132 | 420 kg | 6.472 L |
BF4L914 | 56 kw | 67 kw | 66 kw | 78 kw | 102*132 | 350 kg | 4.314L |
BF6L914 | 89 kw | 106 kw | 112 kw | 115 kw | 102*132 | 485 kg | 6.472L |
BF6L914C | 114 kw | 137 kw | 125 kw | 137 kw | 102*132 | 510 kg | 6.472L |
