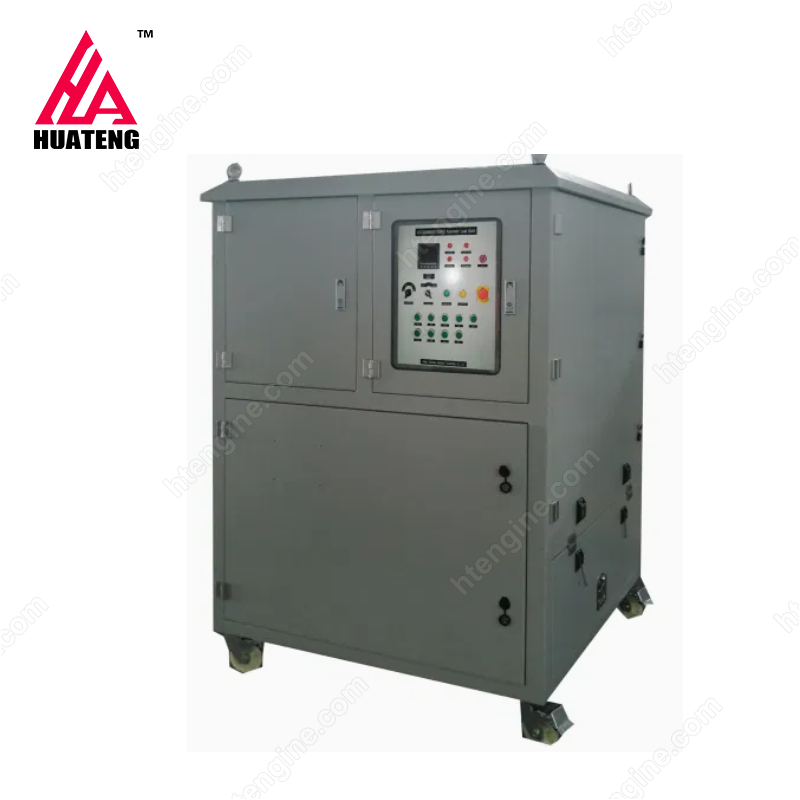

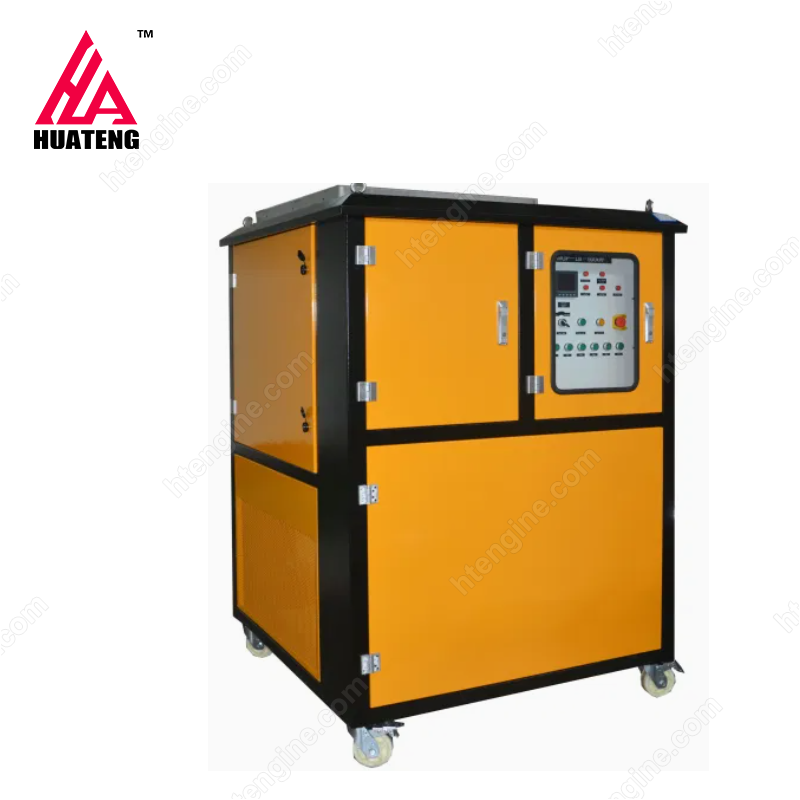

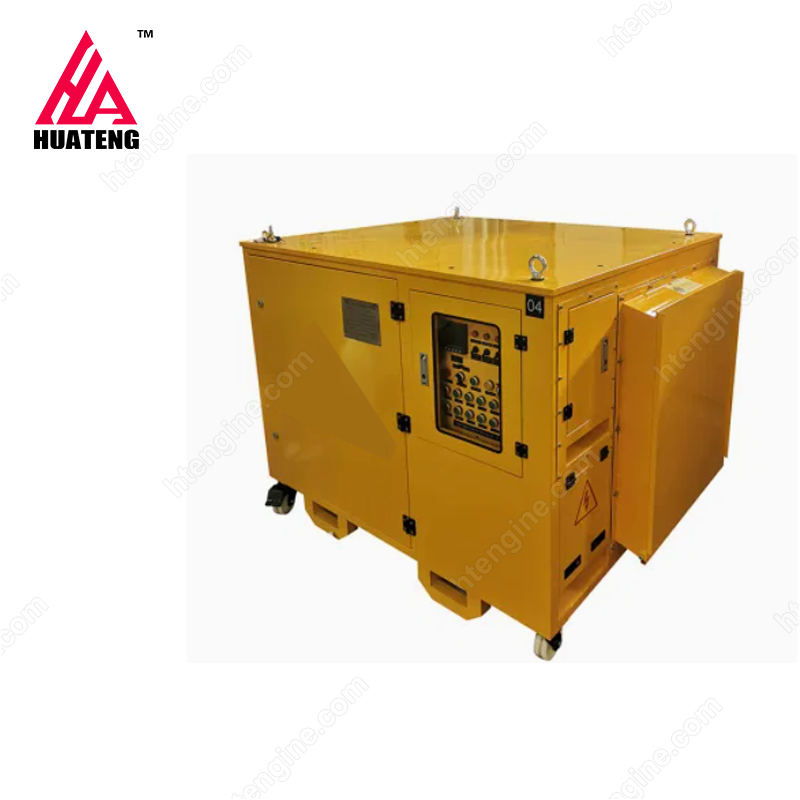

Outdoor AC Load Bank 600kw Load Banks for Generator UPS Testing

Model NO.
AC Load Bank 600kw
Max Load Power
600kw
Power Factor
1
Load Tolerance(Each Step)
±5%
Load Tolerance(Overall)
±3%
Display Precision
0.5 Class
Dimension
1800mm*1420mm*1190mm
Weight
800kg
Insulation Grade
F Class
Transport Package
Wooden Case
Specification
5cbm
Trademark
Triumph Load
Origin
Hebei, China
HS Code
9030339000
Production Capacity
1000sets/Year


Production specification

Rating Voltage/FrequencyAC 380V/50Hz, 3 phase 4 Line
Max Load PowerResistive Load: 600kW
Load StepResistive Load:11 steps; 1,2,2,5,10,10,20,50,100,200,200kW
Power Factor1
Load Tolerance(each step)±5%
Load Tolerance(overall)±3%
Display Precision0.5 class
Control Power SupplyExternal 380VAC, 3phase 4wire 50Hz,
Wire ConnectionLoad Power Supply Input--Copper bar (star connection)
Control power supply input--connector bar
Communication InterfaceRS485, RS232
Insulation ClassF
Working ModeContinuous Working
CoolingForced air cooling,Horizontal air inlet,Horizontal air outlet
TransportationHoisting, there are lifting lug in top of case and wheel castors in bottom
ColorOrange(RAL2008)
DimensionApproximately; 1800mm*1420mm*1190mm
(Width *Length *Height)


Tags

600kwload bank Generator UPS Testing
