INSTRUCTION

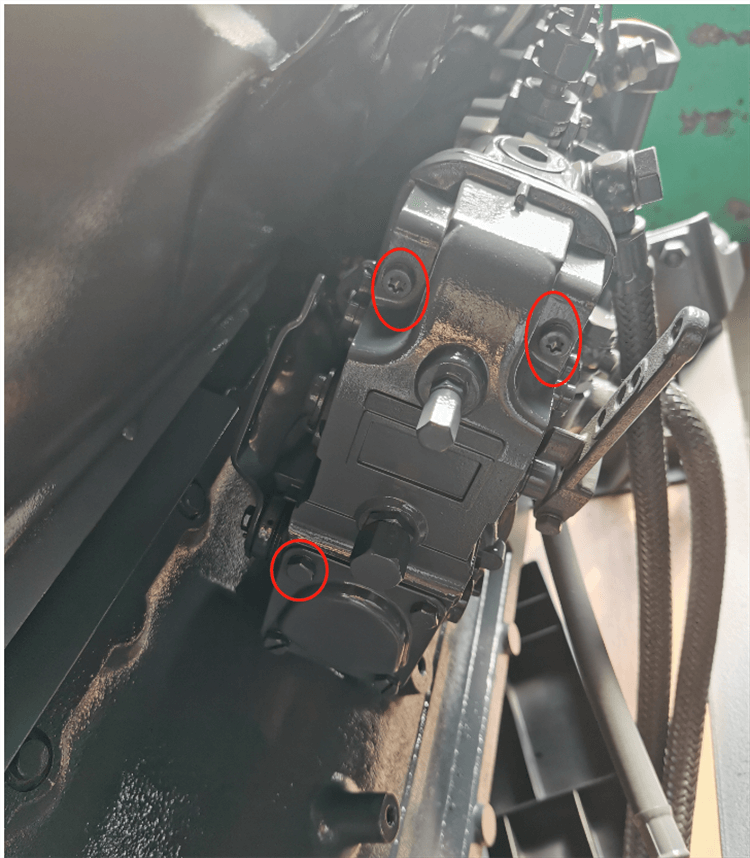

Step 1
Reove the three bolts on the injection pump as shown in the picture.

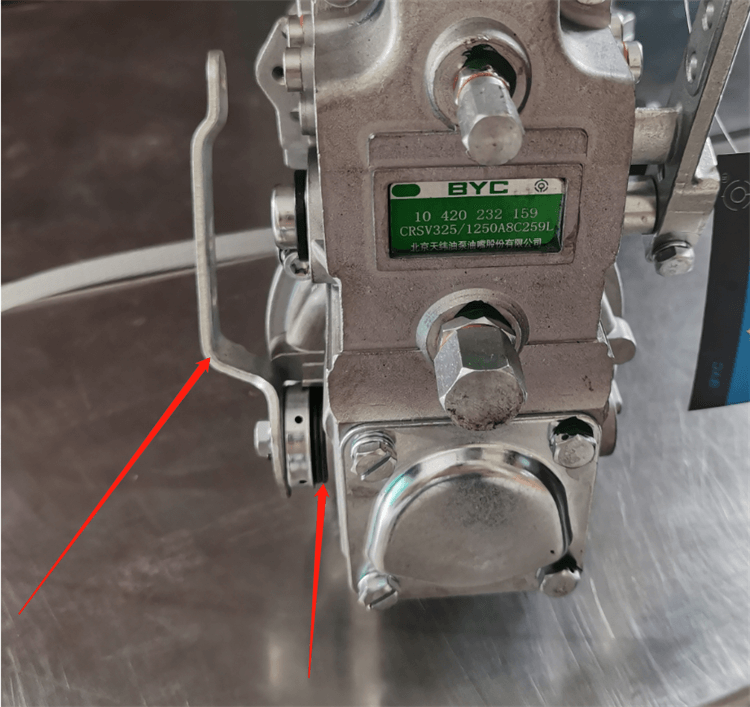

Step 2
Remove the manual stopping lever and remove the spring inside the small cover.

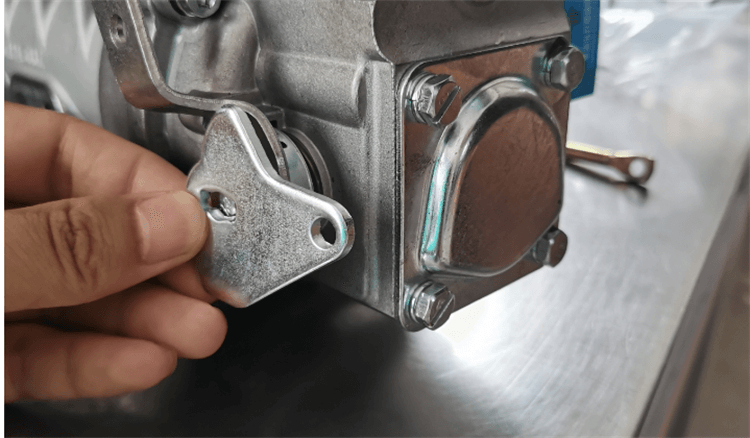

Step 3
Install stopping lever plate. The installation direction is as shown in the following picture. pointy pole up.

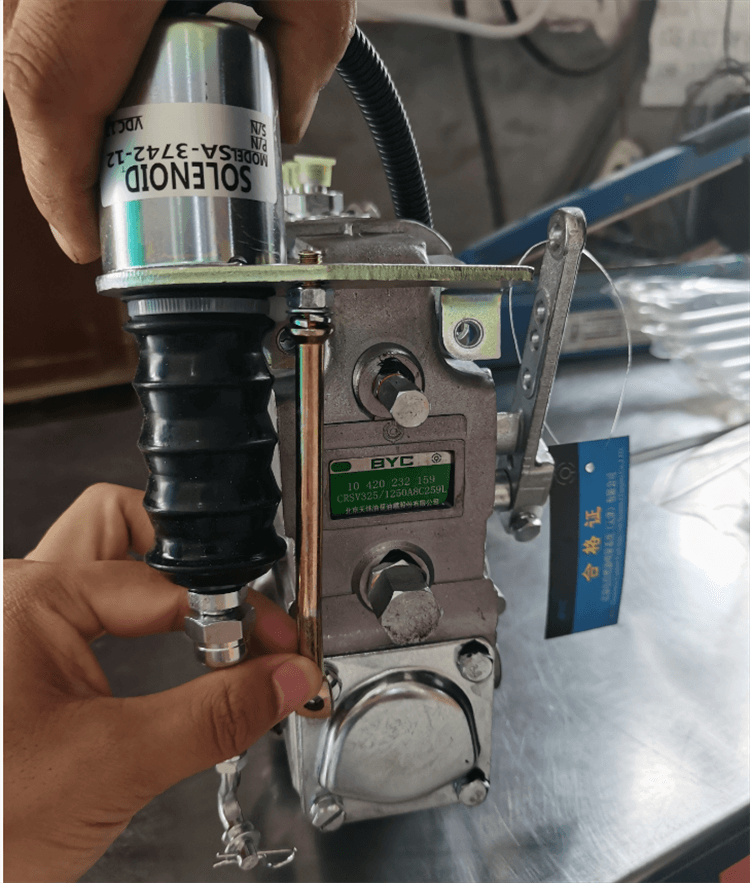

Step 4
Hook up Solenoid.

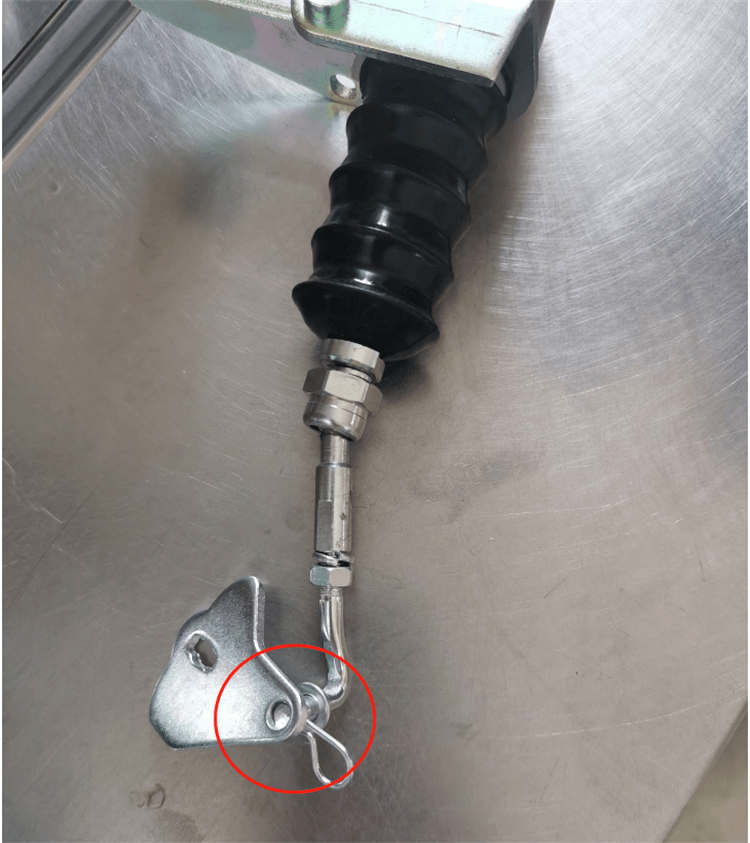

Step 5
Connect the stopping pole and the lever piece.

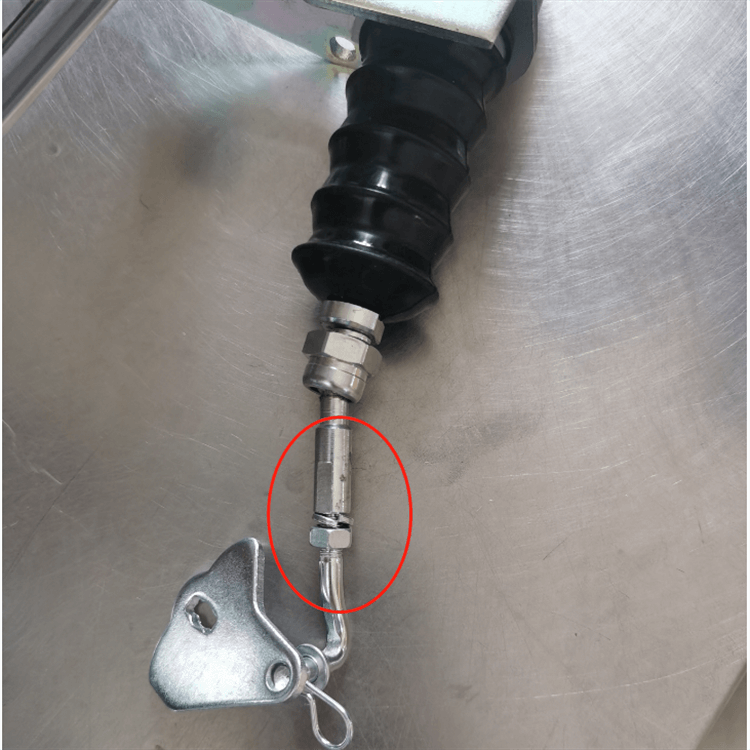

Step 6
Adjust the length of adjustment lever. Making it right length for stopping when retraction.

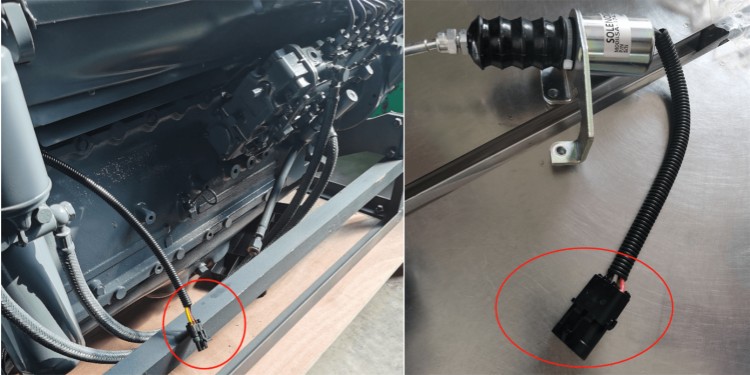

Step 7
Connect cable harness of solenoid with that from the engine control box.
Step 7 can precede Step 6
