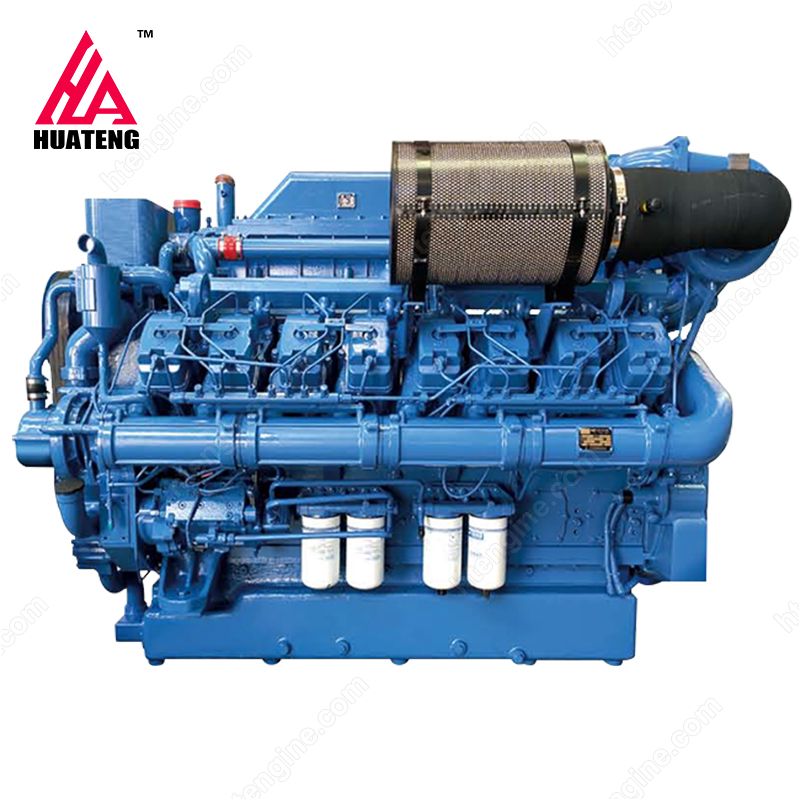

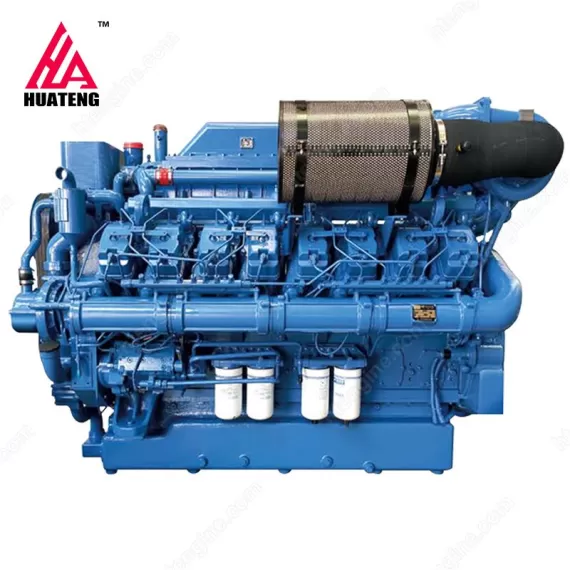

YCTD52 High Power Diesel Engine 1520kW~1985kW Power Range for Yuchai

YCTD52 High Power Diesel Engine 1520kW~1985kW Power Range for Yuchai

（1）1350kW~1600kW prime genset, for continuous and stable power supply.

（2）1500kW~1800kW standby genset, for reliable and fast standby power supply.


Inquire Now Next Product

Production specification

Technical parameters
ModelYCTD52TA2270-G30
     (YC16VTD2270-D30)		YCTD52TA2510-G30
     (YC16VTD2510-D30)		YCTD52TA2270-G32
     (YC16VTD2270-D32)		YCTD52TA2510-G32
     (YC16VTD2510-D32)		YCTD52TA2700-G32
     (YC16VTD2700-D32)

Cylinder quantity -

bore/stroke (mm)

16- 152×18016- 152×18016- 152×18016- 152×18016- 152×180
Displacement (L)52.2652.2652.2652.2652.26
Number of valves per cylinder44444
AspirationTAWTAWTAWTAWTAW
PRP/Speed(kW/rpm)1520/15001680/15001520/18001680/18001805/1800
ESP/Speed(kW/rpm)1672/15001850/15001672/18001850/18001985/1800
COP/Speed(kW/rpm)1212/1500//1407/1800/
DCP/Speed(kW/rpm)1520/15001680/15001520/18001680/18001805/1800
Fuel SystemHPCRHPCRHPCRHPCRHPCR
GeneratorPRP(kWe)13501500135015001600
ESP(kWe)15001650150016501800
COP(kWe)1080//1250/
DCP(kWe)13501500135015001600
